Simplex Nos. 4, 6 & 9

Simplex 60hp Diesel Locomotives

Originally 24 1/8" gauge, these locomotives worked on lightly laid tracks on sand quarries around the St Helens area, often moving from quarry to quarry.

A fleet of a dozen or more such locomotives, owned by Pilkingtons Glass, operated in this way over quite a wide area. The cost of No.9, new in 1968 was £1710, typical of the time. When they became redundant, the fleet was bought by Ainscough Scrapyard, from whence three were purchased for the WHR. All three are essentially the same loco, but have many differences of detail.

Upon arrival, No.4 had a damaged roof which was scrapped and remade during its rebuild between 1990-1993. It was also re-tyred and re-gauged to 60cm during this period.

No.6 (named 'Jonathan' at the WHR for a while) was originally built as a 50hp loco with Dorman 3LA engine. However, a replacement engine (Dorman 3LB 60hp) was fitted at Pilkingtons. The loco was re-guaged to 60cm upon being rebuilt at the WHR between 1985-1987.

No.9 (named 'Katherine' at the WHR for a while) was re-tyred and re-gauged to 60cm in early 2012 and is currently having the cab rebuilt and being generally overhauled.

Specifications for No. 4

Builder Motor Rail Ltd
Built 1966
Works number 60s 333
Type 60s
Wheel arrangement 4 wheel
Driving wheel diameter 18" 457mm
Engine 60 hp Dorman 3LB 44.7kW
Transmission Mechanical
Final drive Chains
Weight 5 tonnes
Arrived W.H.R. late 1981
Gauge 23 5/8" 600mm
Livery Orange
Owners W.H.R. members consortium
Previous owners Pilkingtons Glass, St Helens


Specifications for No. 6

Built 1959
Works number 11102
Gauge 23 5/8" 600mm
Livery Green, yellow ballast weights
Weight 5 Tons


Specifications for No. 9

Built 1968
Works number 60s 363
Gauge 23 5/8"  600mm
Livery Was red but after current maintenance, yellow (as built)
Weight 5 Tons

See Also

  • More photos of Works Diesels Locomotives at the WHHR.


Simplex no.4

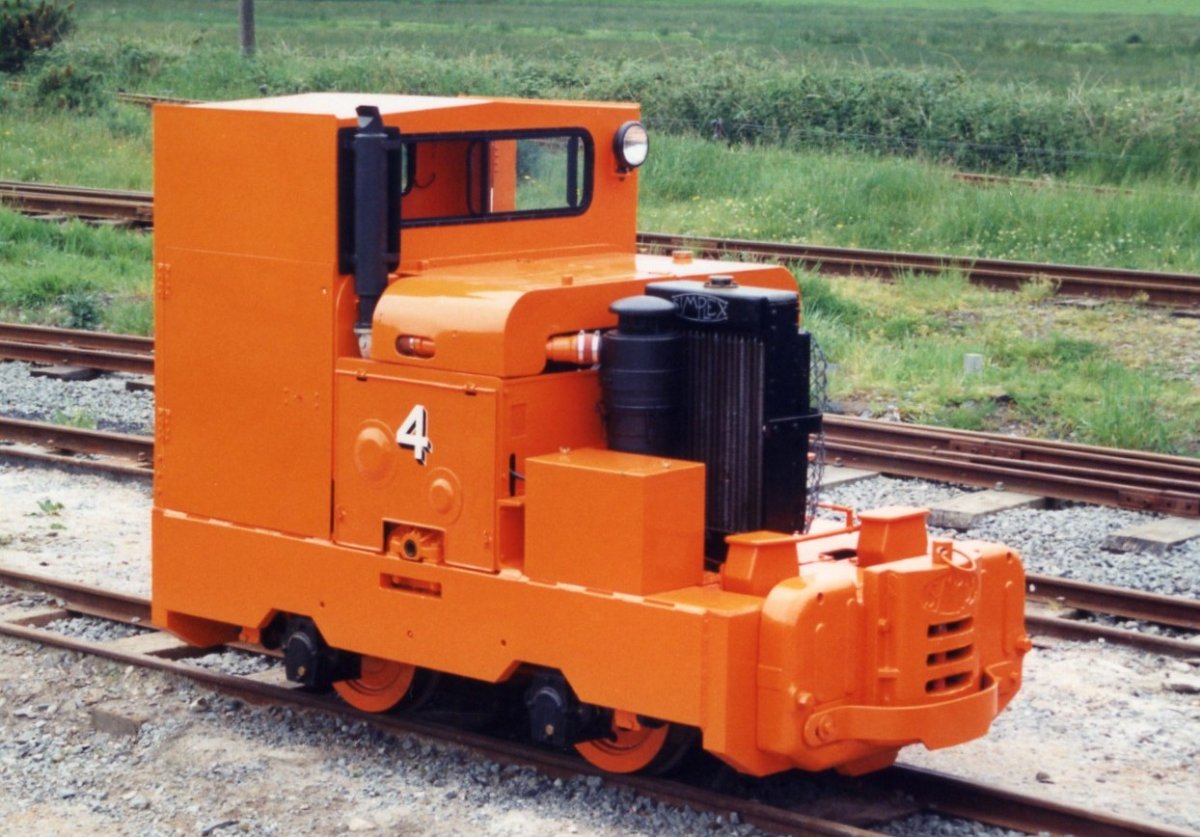

No.4 at Gelerts Farm Works. 1990s.


Simplex no.6

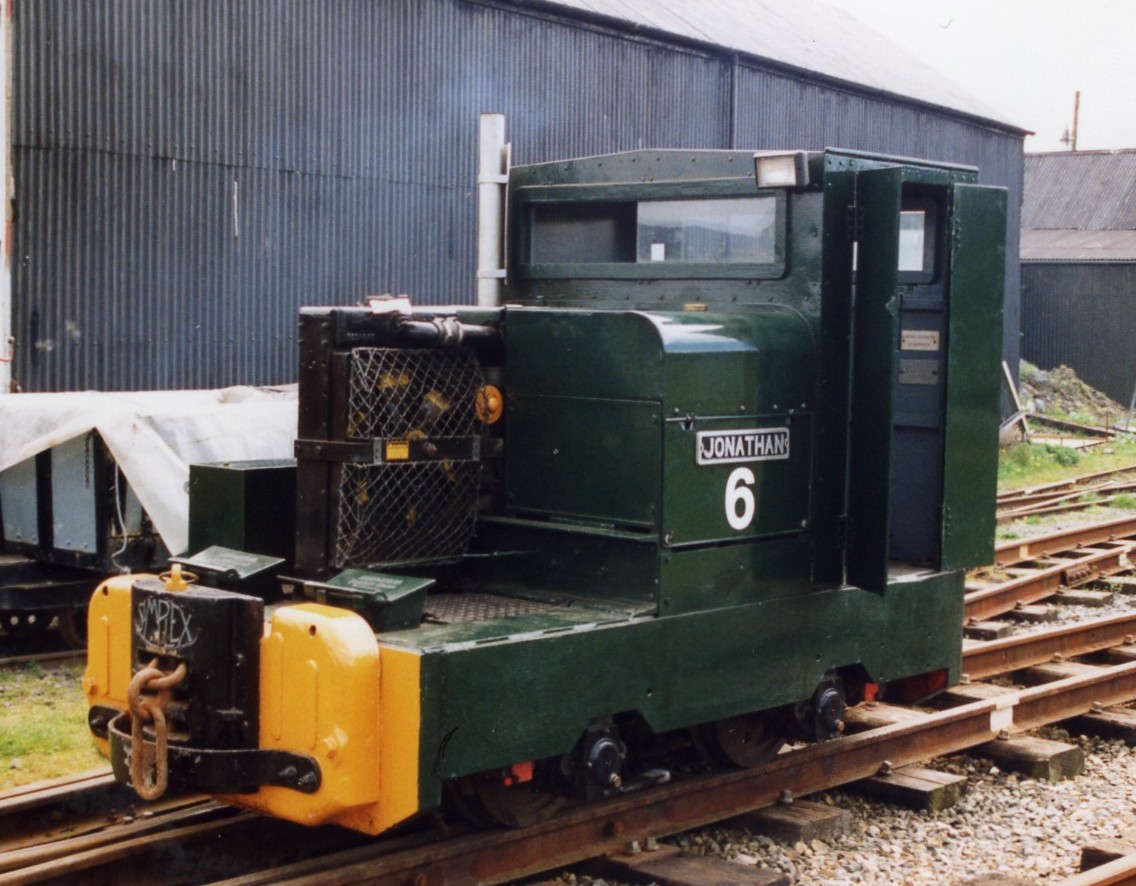

No.6 at Gelerts Farm Works. 1990s.


Simplex no.9

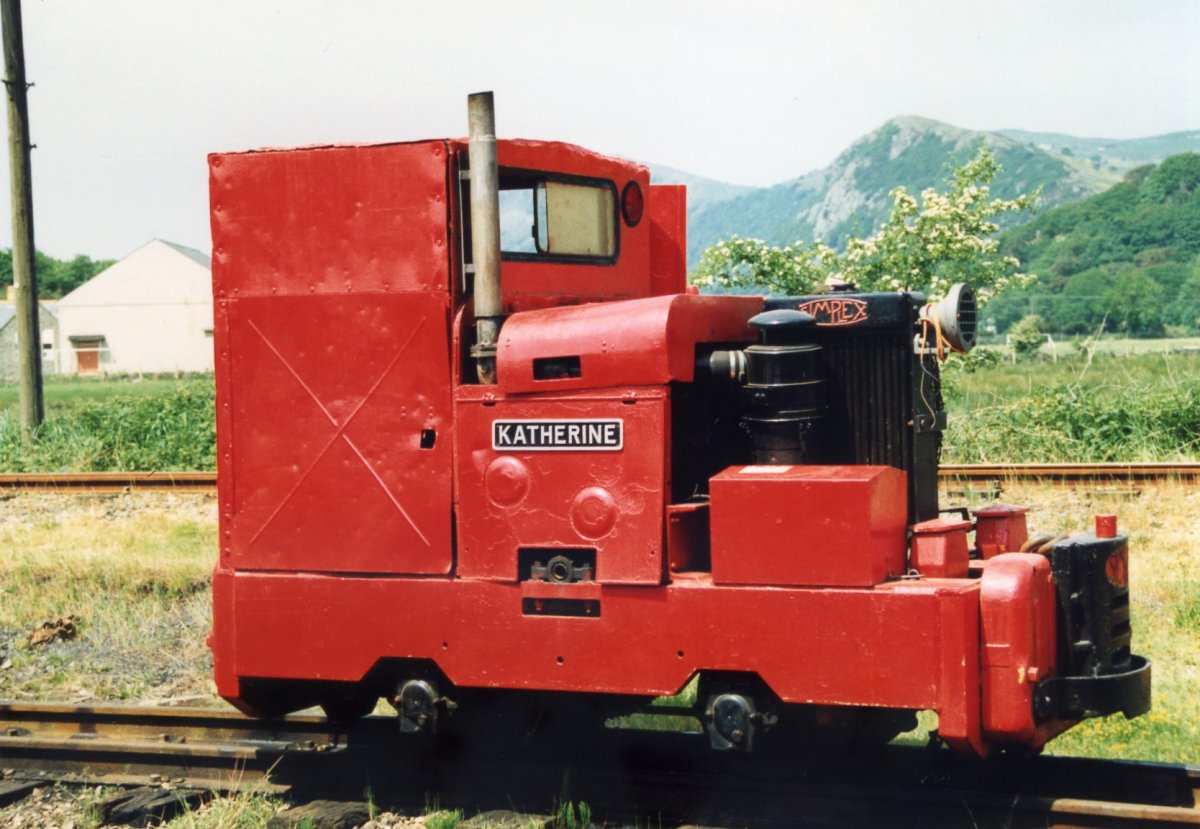

No.9 at Gelerts Farm Works. 1990s.
