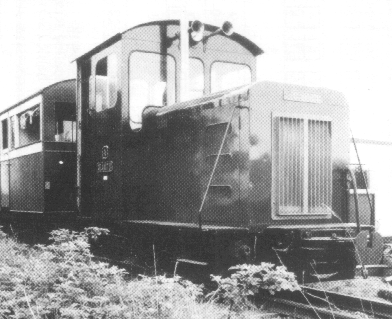

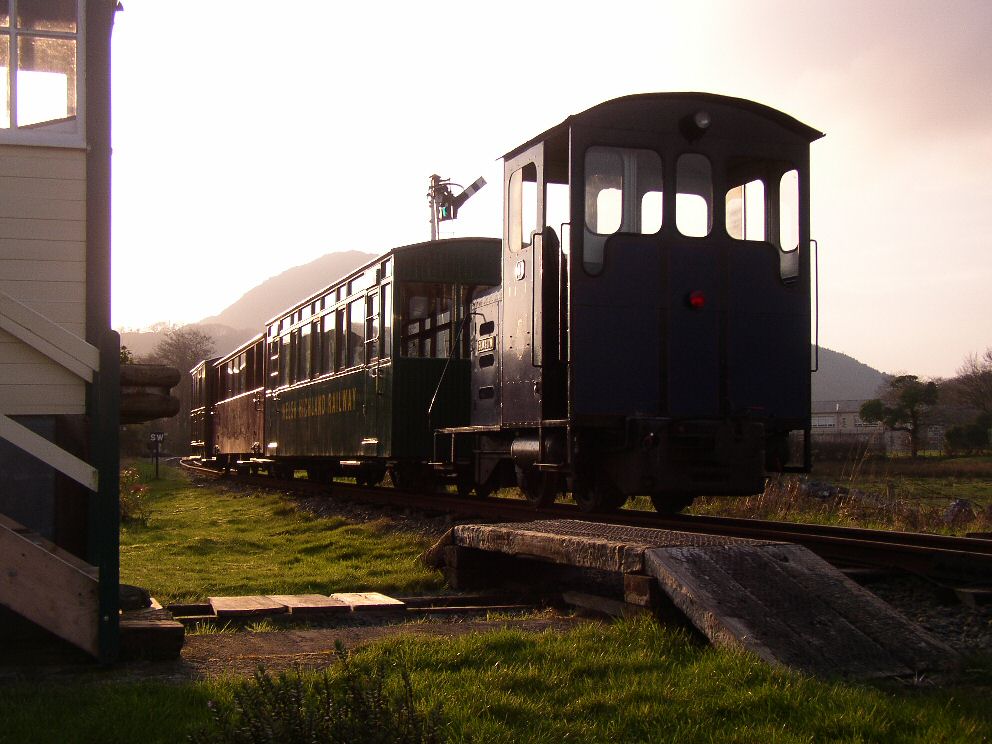

No. 1 'Glaslyn'

Ruston & Hornsby 40DL Diesel Locomotive

Before coming to the WHR, Glaslyn and Kinnerley both worked at Blockleys Ltd, Hadley (in Telford, Shropshire). Both are type 40DL, although the original Ruston 3VRH engine in Glaslyn was replaced by a Perkins 6.354.

For use on the WHR it has been fitted with air brakes (powered by a compressor added at the side of the engine) and a cab. Some years after entering service a starter motor was fitted.

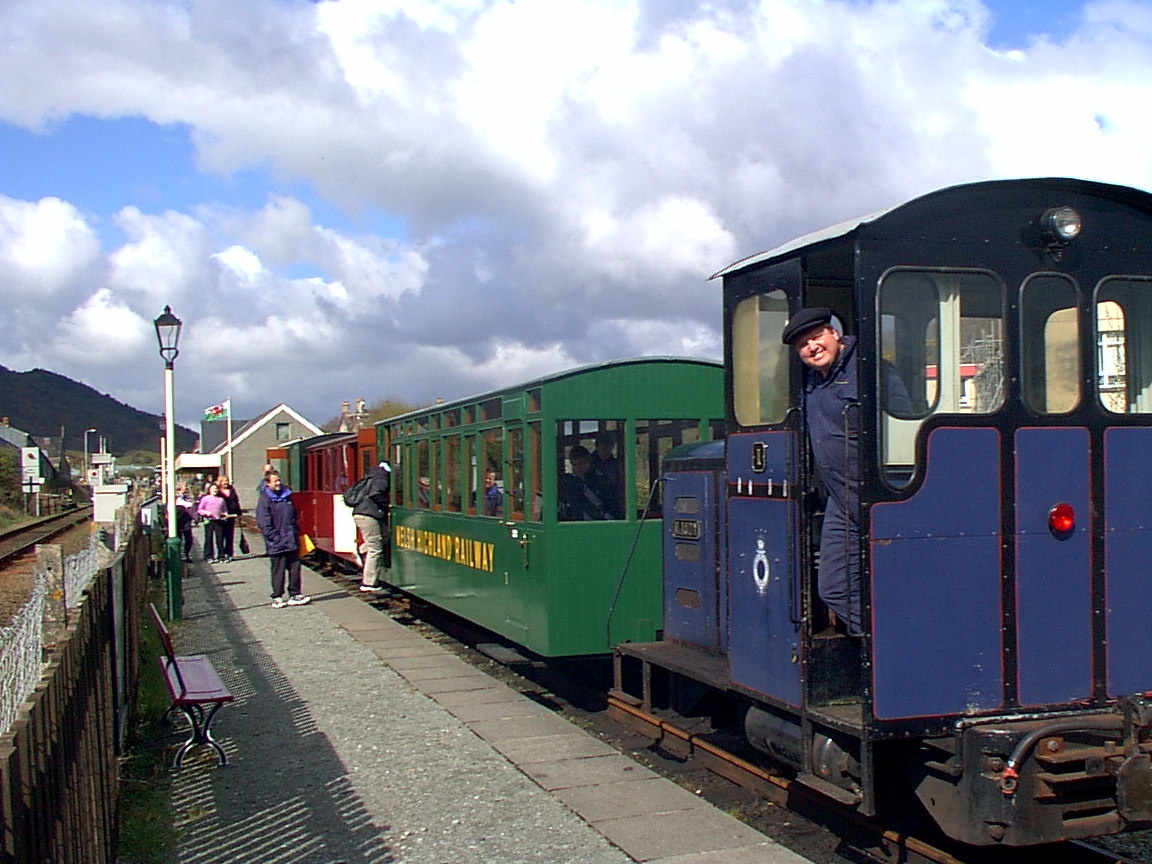

Glaslyn is the main passenger diesel, but occasionally one of the LYd2 Polish diesels replaces it.

Specifications

BuilderRuston & Hornsby
Built1952
Works number297030
Type40DL
Wheel arrangement4 wheel
Driving wheel diameter20"508mm
EnginePerkins 6.354
Compression Ratio-
TransmissionMechanical
Final driveChains
Weight5 tonnesoriginally
Maximum axle load2.5 tonnes
Arrived W.H.R.1980
OwnersW.H.R. Ltd
Previous ownersBlockleys Ltd, Hadley

Glaslyn is the Welsh for Blue Lake.
